How do I transfer devices between Bus libraries?

You have been e-mailed a library file (Bus.lib) containing a new device that does not currently exist in the library file (PTW.lib) on your computer. The new device is a CUTLER-HAMMER Pow-R-Line D panelboard. It was created in the Bus section of the library.

Step 1 - Copy this file to the (C:)\PTW32\Lib directory on your hard drive.

Step 2 - Start PTW

Step 3 - Open the existing PTW.lib file by selecting the Document pull-down menu. Select the Library menu item.

faq_18_01

Step 4 - In the "Select Document Type" dialog, select the "PTW Library" and click on the "OK" button.

faq_18_02

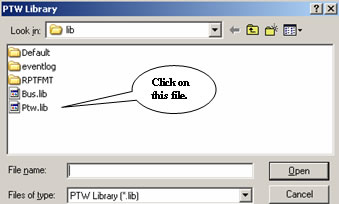

Step 5 - On the next window, select the PTW.LIB file and click on the "Open" button.

faq_18_03

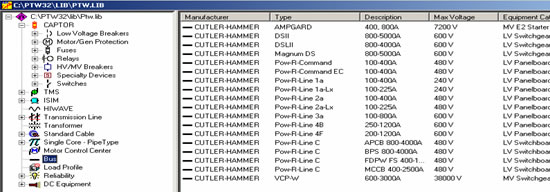

Step 6 - The new device exists in the Bus section of the library. Select the Bus section of the library.

faq_18_04

Step 7 - Open the Bus.lib file containing the new bus component by selecting the Document pull-down menu. Select the Library menu item.

faq_18_05

Step 8 - In the "Select Document Type" dialog, select "PTW Library" and click on the "OK" button.

faq_18_06

Step 9 - On the next window, select the Bus.lib file and click on the "Open" button.

faq_18_07

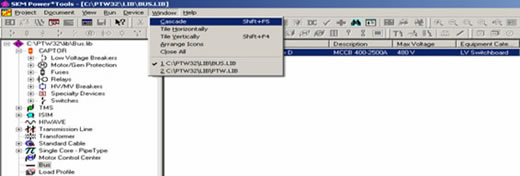

Step 10 - Cascade the windows by selecting the Window pull-down menu. Select the Cascade menu item.

faq_18_08

Step 11 - The new device exists in the Bus section of the library. Select the Bus section of the library.

faq_18_09

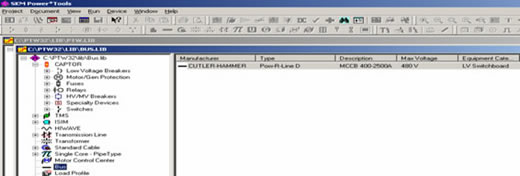

Step 12 - Select the new device by clicking on it once so that it is highlighted.

faq_18_10

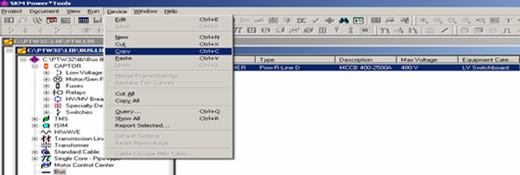

Step 13 - Select the Device pull-down menu. Click on the Copy menu item.

faq_18_11

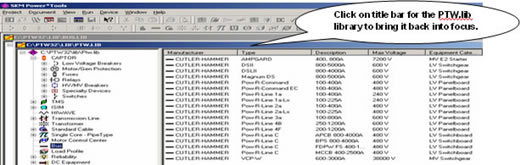

Step 14 - Bring the existing PTW.lib file back into focus, and click on the Bus library category.

faq_18_12

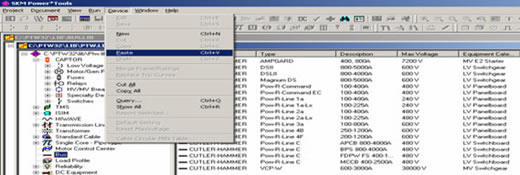

Step 15 - Select the Device pull-down menu again. Click on the Paste menu item.

faq_18_13

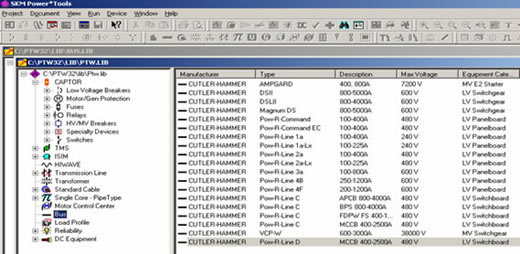

The new device(s) now resides in your existing library. Initially, it will be added to the end of the list, but it will be sorted alphabetically next time the library is opened or until you switch between different library categories.

faq_18_14

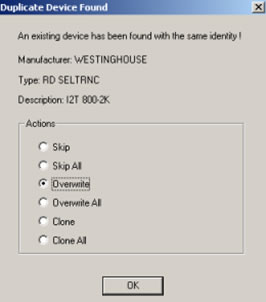

Notes: If the bus device(s) you are pasting into the destination library already exist, the following dialog will appear. Select the appropriate option and click on the "OK" button.

faq_18_15

If you have additional questions, please feel free to contact tech support.
