Using the "Color One-Line Toolbar" in PTW32

faq_ptw11_1

faq_ptw11_2 Toggle the display of data state colors for components

This button will apply a user-defined color on each component in the One-Line drawing based on the �Data State� selected for each component. These colors can be changed in the One-Line global options.

faq_ptw11_3

User can choose from the following "Data State" types:

Complete
Verified
Estimated
Incomplete

Note: "Data State" attributes will not affect the study results of any projects.

faq_ptw11_4 Toggle the display of the arc flash category color for the buses and protective devices

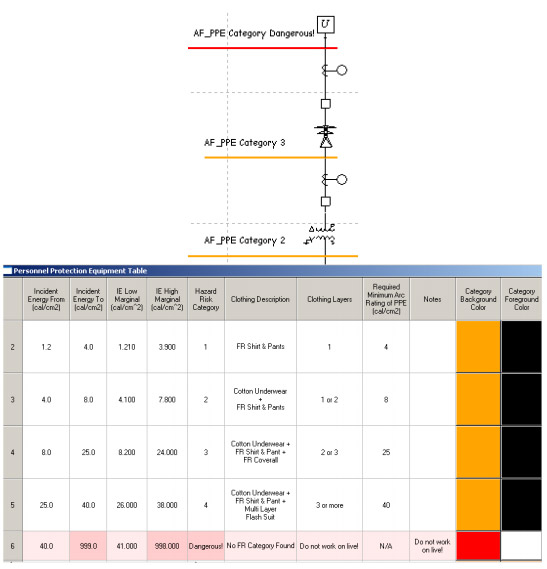

This button will apply the "Category Background Color" column in Arc Flash's PPE Table to the One-Line, based on the PPE Category assigned to each bus by the Arc Flash evaluation report.

faq_ptw11_5

faq_ptw11_6 Toggle the display of the one-line nametag and datablock color

This button is complementary to the previous two. It will apply the color of each component to its corresponding nametag and datablock in the One-Line.
