How do I transfer devices between Captor libraries?

You have been e-mailed a library file (Breaker.lib) containing a new device that does not currently exist in the library file (PTW.lib) on your computer. The new device is a low-voltage breaker with a solid-state trip unit. It was created in the CAPTOR\Low Voltage Breakers\Static Trip library category.

Step 1 - Copy this file to the (C:)\PTW32\Lib folder on your hard drive.

Step 2 - Start PTW

Step 3 - Open the existing PTW.lib file by selecting the Document pull-down menu. Select theLibrary menu item.

faq_01_clip_image002_0000

Step 4 - In the "Select Document Type" dialog, select "PTW Library" and click on the "OK" button.

faq_01_clip_image006_0000

Step 5 - On the next window, select the PTW.LIB file and click on the "Open" button.

faq_01_clip_image003

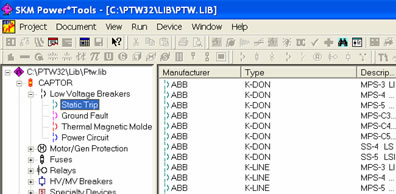

Step 6 - The new device exists in the CAPTOR\Low Voltage Breakers\Static Trip category of the library. Expand the CAPTOR library category by clicking on the "+" symbol. Expand Low Voltage Breakers category by clicking on the "+" symbol. Select Static Trip library category.

faq_01_clip_image002_0001

Step 7 - Open the Breaker.lib file containing the new breaker by selecting the Document pull-down menu. Select the Library menu item.

faq_01_clip_image004_0000

Step 8 - In the "Select Document Type" dialog, select "PTW Library" and click on the OK button.

faq_01_clip_image005

Step 9 - On the next window, select the Breaker.lib file and click on the "Open" button.

faq_01_clip_image002_0002

Step 10 - Cascade the windows by selecting the Window pull-down menu. Select the Cascademenu item.

faq_01_clip_image004_0001

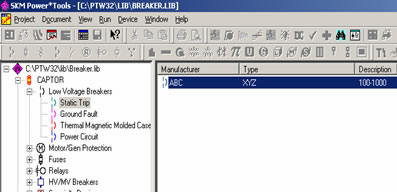

Step 11 - The new device exists in the CAPTOR\Low Voltage Breakers\Static Trip category of the library. Expand the CAPTOR library category by clicking on the "+" symbol. Expand Low Voltage Breakers category by clicking on the "+" symbol. Select Static Trip library category.

faq_01_clip_image006_0001

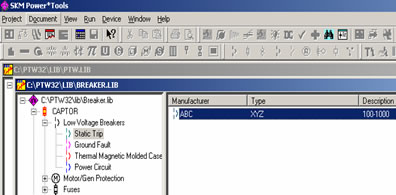

Step 12 - Select the new device by clicking on it once so that it is highlighted.

faq_01_clip_image008_0000

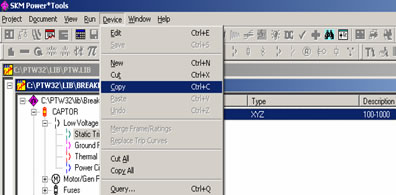

Step 13 - Select the Device pull-down menu. Click on the Copy menu item.

faq_01_clip_image010_0000

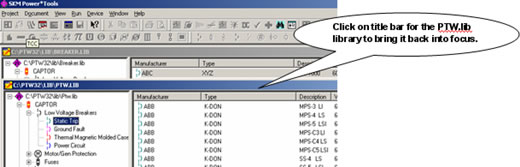

Step 14 - Bring the existing PTW.lib file back into focus, and expand the Static Trip library category.

faq_01_clip_image012_0000

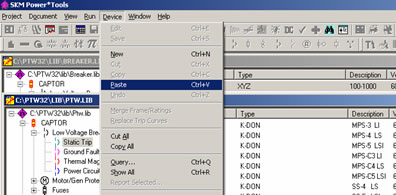

Step 15 - Select the Device pull-down menu again. Click on the Paste menu item.

faq_01_clip_image014_0000

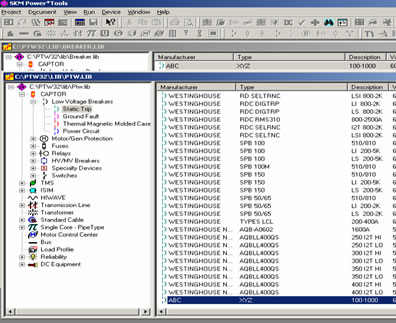

The new device(s) now resides in your existing library. Initially, it will be added to the end of the list, but it will be sorted alphabetically next time the library is opened or until you switch between different library categories.

faq_01_clip_image016_0000

Notes: If the protective devices you are pasting into the destination library already exist, the following dialog will appear. Select the appropriate option and click on the "OK" button.

faq_01_clip_image018_0000

The above procedure illustrates how to copy a breaker from one library to another. This can be applied to any of the different protective device library categories.

However, you cannot copy a protective device from one category type to another. For example, you cannot copy a protective device from the fuse library category to the relay category. However, you can copy a fuse from the low-voltage fuse category to high-voltage fuse category and vice versa.

If you have additional questions, please feel free to contact tech support.
