How do I display Arc Flash results for Protective Device Line and Load Side on the datablock?

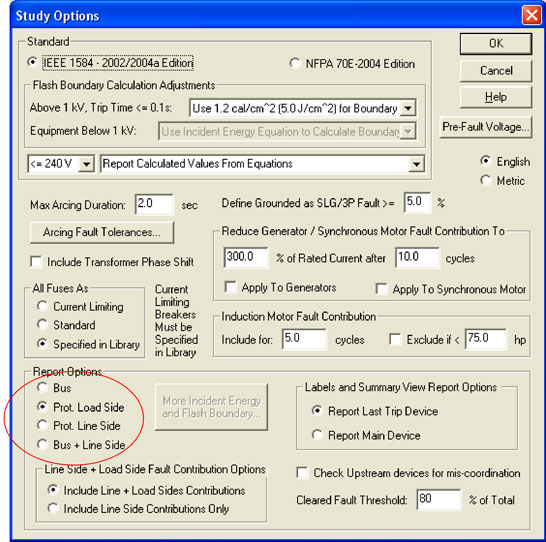

To display the Arc Flash datablock results for the Protective Device Line and Load Side, run the Arc Flash study with the "Prot. Load Side" and "Prot. Line Side" options checked. These options can be found in the "Study Options" menu of the Arc Flash Evaluation window.

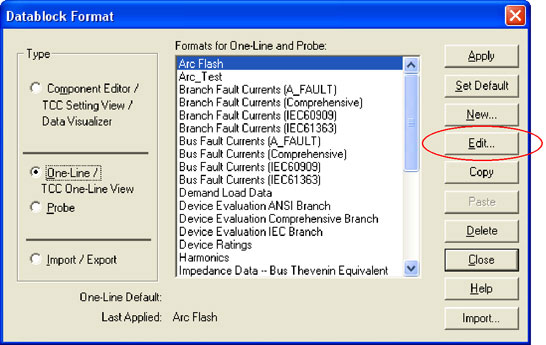

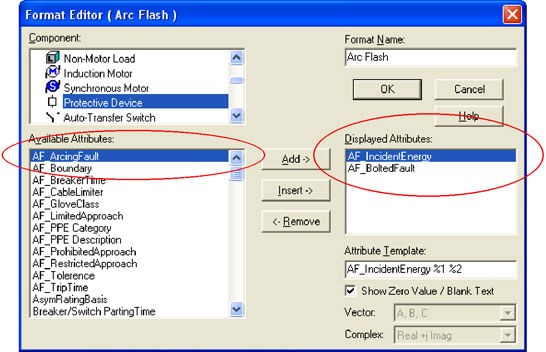

You will also need to edit the datablock format that you plan to use to include the Arc Flash attributes that you will like to display on the one-line drawing.
